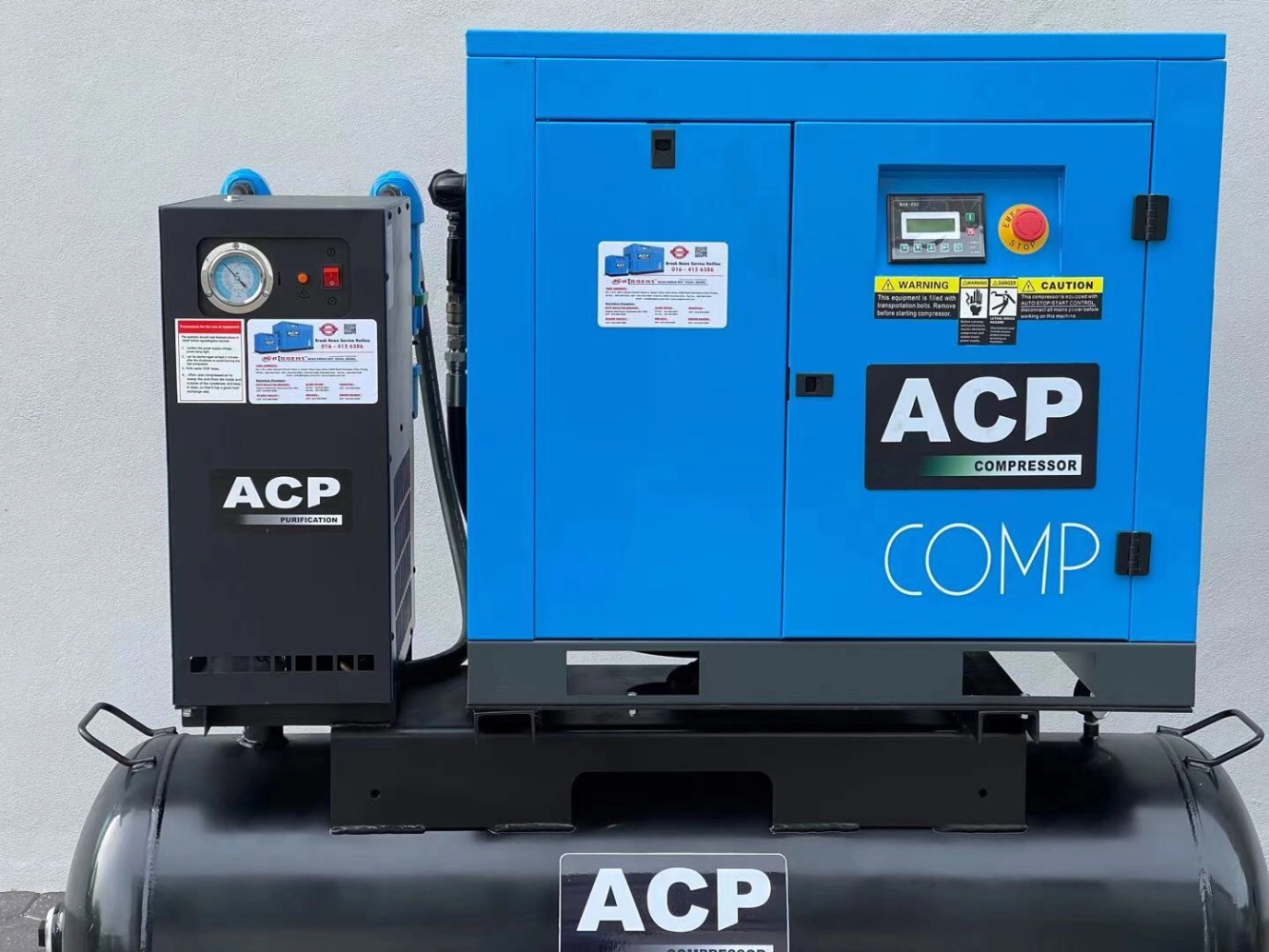

(5 In 1) 20HP Direct Drive Rotary Screw Air Compressor with Refrigerated Air Dryer, Filters, and 400L Air Receiver Tank

5-in-1 solution: Combines a 20HP direct drive rotary screw compressor, refrigerated air dryer, filters, and a 400L air receiver tank into one integrated unit.
Direct drive system: Eliminates belts, transferring power efficiently and reducing energy loss and maintenance.
Refrigerated air dryer: Removes moisture from compressed air, ensuring clean, dry air for sensitive equipment.
Pre-filter & after-filter: Filter contaminants and particles, improving air quality and extending equipment life.
400L air receiver tank: Provides a stable air supply, reducing pressure fluctuations and optimizing performance.
Energy-efficient operation: Reduces power consumption while maintaining high performance, lowering operational costs.
Space-saving design: Combines key components into one compact unit, cutting installation time and minimizing extra equipment needs.
Low maintenance: Requires minimal upkeep, reducing downtime and lowering costs

Description

The 5-in-1, 20HP Direct Drive Rotary Screw Air Compressor offers a complete, energy-efficient air solution for industrial applications. This powerful 20HP compressor features a Direct Drive System, eliminating belts to provide efficient, direct power transmission and reducing energy losses. The system is equipped with a Refrigerated Air Dryer, Pre-Filter, and After-Filter to ensure dry, clean air and protect your equipment from contaminants. The 400L Air Receiver Tank provides ample storage, delivering stable, consistent air supply while reducing pressure fluctuations. Ideal for businesses seeking high-performance, space-saving, and low-maintenance air compressor systems, this 5-in-1 model simplifies installation and enhances operational efficiency.

TECHNICAL PARAMETER
BRAND	ACP
MODEL	RS 20A – P/400/D
CAPACITY AT NOMINAL PRESSURE	2.4 m3/min (77.5 CFM)
MOTOR RATED	20HP / 15KW / 3PHASE / 50HZ
MAXIMUM PRESSURE	8.0 BAR (116 PSI)
WEIGHT	480 Kgs
NOISE LEVEL	73 dB (A)
DIMENSION (L x W x H)	1810 x 670 x 1820mm
HORIZONTAL TANK SIZE	400L
REFRIGERATED DRYER	SMD 0020 STAINLESS STELL HEAT EXCHANGER DRYER
PRE & AFTER FILTER	HF 0020 AA & AX
