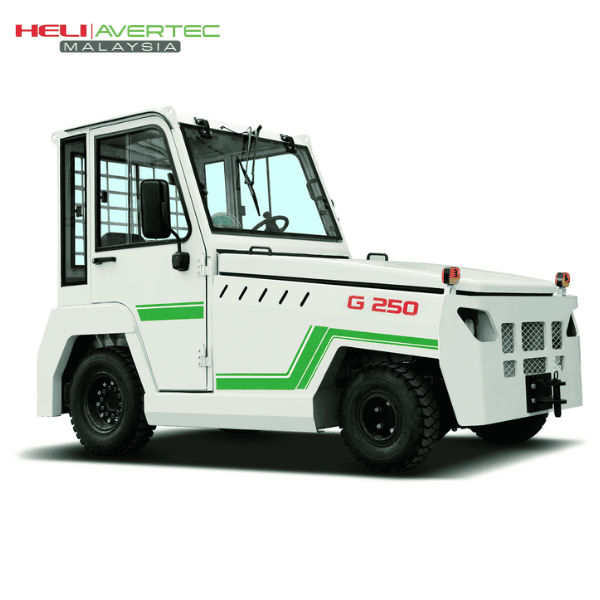

The G2 Series 20–30 Ton Lithium Battery Tractor offers a powerful, efficient, and user-friendly solution for heavy-duty transport tasks. Key features include:
Low noise and zero emissions, ensuring an eco-friendly operation
High traction force for handling large loads with ease
Intuitive and simple operation with a modern, innovative design
Lightweight and agile steering, enhancing maneuverability
Comfortable and safe driving experience with an ergonomic layout
Stable performance and high reliability in demanding conditions
Easy maintenance for minimal downtime
Double-chamber, double-circuit braking system for enhanced safety
Automatic speed reduction during turns for added control
Convenient traction pin control mechanism for efficient coupling
| G2 Series 20-30t Lithium Battery Tow Tractor | |||
|---|---|---|---|
| Specification | QYD200-A1Li | QYD250-A1Li | QYD300-A1Li |
| Operator Type | Seated | ||
| Rated Towing Weight (T) | 20 | 25 | 30 |
| Rated Traction (kN) | 14 | ||
| Max Traction (kN) | 26 | 29 | 32 |
| Max Travel Speed (Load/Unload) (km/h) | 14/26 | 13/26 | 11/26 |
| Max Gradeability (Load/Unload) (%) | 6/30 | 5/30 | 4/30 |
| Overall Dimensions (L×W×H) (mm) | 3230×1425×1980 | ||
| Drive Motor Power (kW) | 28.7 (AC) | ||
| Battery Voltage/Capacity (V/Ah) | 80/500/600 | 80/813 | 80/813 |
| *High performance lithium-ion battery tow tractor* | |||
