Environment Friendliness
- zero emission
- low noise
- free of heavy metals
- no corrosion
- no acid mist volatilization
Maintenance Free
- unnecessary of fluid adding and dust proofing
- daily maintenance free
- manual maintenance free
Long Service Life
- Over 75% capacity reserved after 4000 shifts operation
- Longer service life than lead-acid battery in equal working condition
- 5 years or ten thousand hours quality guarantee for high performance lithium battery assembly
High Efficiency and Energy Saving
- 2hours charging meet 6-8 hours working demand
- High-energy density, self-discharging rate lower than 1% per month
- 95% energy conversion rate, superior charging and discharging performance
- Flexible to charge, easy to operate, no impact on battery life
- Unnecessary to change battery, cost saving & operation safety
Suitable for working in both high and low environment
- Lithium battery is better than lead-acid battery when working between -25℃and 55℃
High safety
- According to the characteristics of industrial vehicles, it achieves safety protection design which includes lithium battery materials, battery core type, PACK technique and system power management.
- “Multiple node safety closed circuit protection” realizing truck real-time closed-circuit protection in variable conditions
- “Lock affirming” function during charging avoiding “hot connecting and disconnecting” operation
- “Whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
Technical Parameters

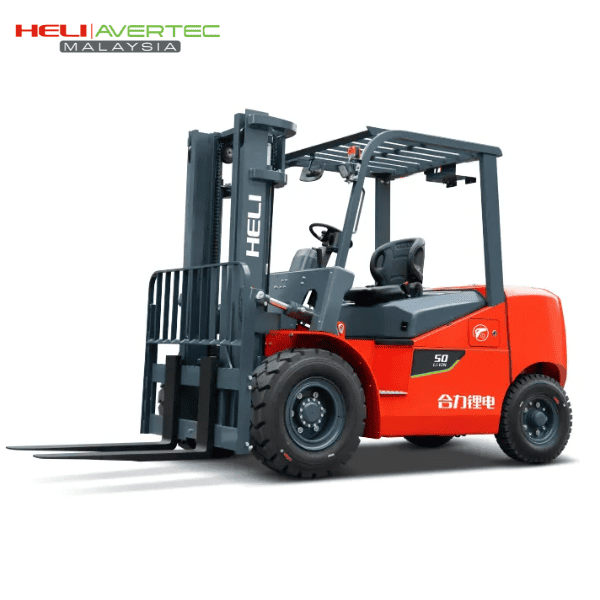

Models covered: CPD40 (4.0 t), CPD45 (4.5 t), CPD50 (5.0 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CPD40 4,000 kg | CPD45 4,500 kg | CPD50 5,000 kg |
|---|---|---|---|
| Rated Capacity (Q) | 4,000 kg | 4,500 kg | 5,000 kg |
| Load Center (C) | 500mm | ||
| Drive / Power | Electric (Li-ion) • 3-wheel counterbalance • AC systemCompact | ||
| Battery Voltage / Capacity (options) | 77 V / 600–700 Ah | ||
| Controller / Control Mode | Curtis / ZAPI controller • AC power control | ||
| Travel Speed (laden / unladen) | ≈ 14 / 15 km/h | ≈ 13.5 / 14.5 km/h | ≈ 13 / 14 km/h |
| Lift Speed (laden / unladen) | ≈ 0.30 / 0.38 m/s | ≈ 0.28 / 0.36 m/s | ≈ 0.27 / 0.35 m/s |
| Lowering Speed (laden / unladen) | ≈ 0.40 / 0.40 m/s | ||
| Max. Drawbar Pull | ≈ 25,000 N | ||
| Max. Gradeability (laden) | Up to 15% | ||
| Turning Radius | ≈ 2,150 mm | ≈ 2,180 mm | ≈ 2,200 mm |
| Motors (drive / lift) | Drive ≈ 12 kW • Lift ≈ 15 kW | ||
| Service / Parking Brake | Electro-hydraulic / Automatic parking | ||
| Tyres | Solid: Front 28x9-15 • Rear 18x7-8 | ||
| Standard Lift Height | 3,000 mm (standard mast); optional 2-stage & 3-stage masts available | ||
| Overall Length (to fork face) | ≈ 2,695 mm | ≈ 2,700 mm | ≈ 2,705 mm |
| Overall Width | ≈ 1,590 mm | ≈ 1,590 mm | ≈ 1,590 mm |
| Overhead Guard Height | ≈ 2,490 mm | ≈ 2,490 mm | ≈ 2,490 mm |
| Mast Tilt (F/B) | 6° / 12° | ||
| Convenience & Uptime | Fast charging compatible • LCD display • Ergonomic control handle | ||
| Safety Aids | Emergency reverse • Overload protection • Hour meter | ||
Disclaimer: Please note that specifications are for reference only, we recommend consulting our sales team to confirm exact specifications for your needs.
