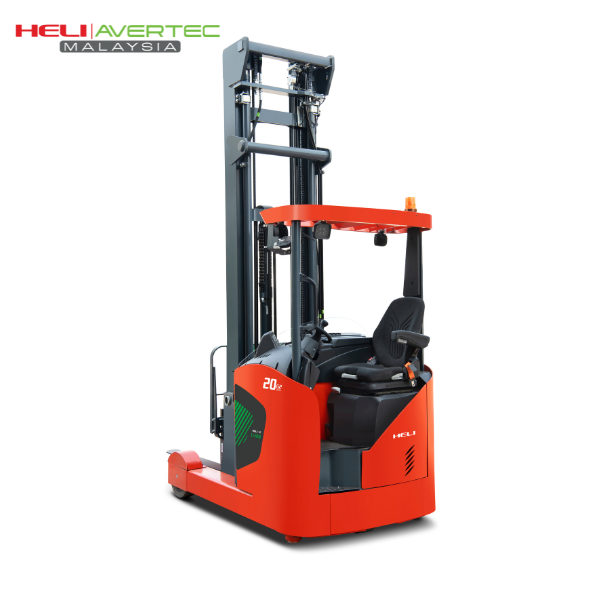

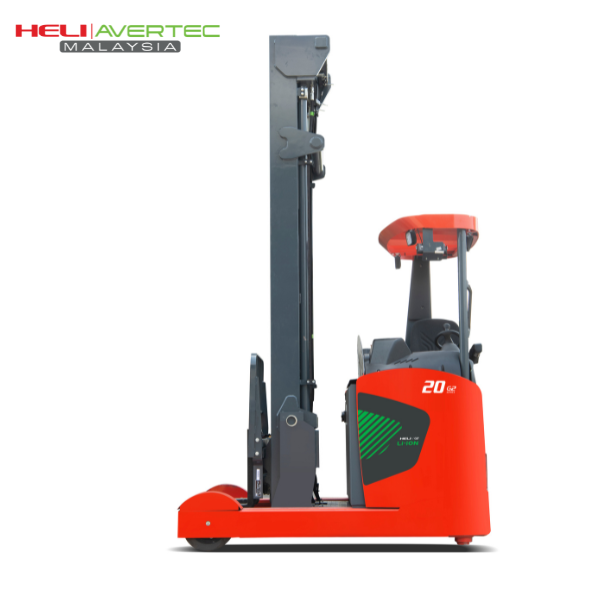

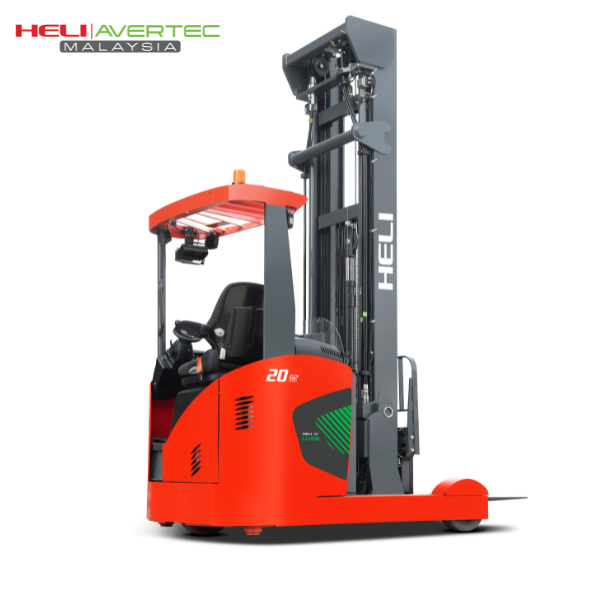

Product: Heli CQD16| CQD20 1.6-Ton & 2-Ton Electric Reach Truck
Capacity: 1600 kg or 2,000 kg
Max Lift Height: Up-to 12.5 meters
Power:Â Lithium-Ion Electric, enabling opportunity charging for multi-shift operation.
Design: Compact with a 360° rotating drive wheel for exceptional maneuverability in narrow aisles.
Operator Cabin:Â Seated, ergonomic design with touch controls and enhanced noise reduction for reduced fatigue.
Safety Systems:Â Integrated frame mast for stability, automatic ramp braking, emergency power-off, and smooth load rotation.
Visibility & Options:Â Improved mast visibility, with an optional video camera and load height preselector for high-level operations.
Why the changes work:
Active Voice & Strong Verbs:Â Uses phrases like “engineered to optimize,” “delivers exceptional performance,” and “ensures productivity.”
Structured Format:Â Groups related features (e.g., all safety points are together) for better readability.
Professional Terminology:Â Replaces informal phrases with terms like “high-density warehousing,” “opportunity charging,” “operator ergonomics,” and “maximized storage density.”
Benefit-Oriented: Explains not just what a feature is, but what it does for the user (e.g., “minimizes operator fatigue,” “enables continuous multi-shift operation”).
Clarity and Conciseness:Â Eliminates redundancy and presents the information in a clear, logical flow.
Technical Parameters
Models covered: CQD16 (1.6 t), CQD20 (2.0 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CQD16-GB2S 1,600 kg • Lead Acid |
CQD16-GB2SZ 1,600 kg • Lead Acid |
CQD16-GB3SLi 1,600 kg • Lithium |
CQD20-GB2S 2,000 kg • Lead Acid |
CQD20-GC2S 2,000 kg • Lead Acid |
CQD20-GB3SLi 2,000 kg • Lithium |
|---|---|---|---|---|---|---|
| Rated Capacity (Q) | 1,600 kg | 1,600 kg | 1,600 kg | 2,000 kg | 2,000 kg | 2,000 kg |
| Load Center (C) | 600mm |
|||||
| Drive / Power | Electric • AC Motor • Reach ForkliftNarrow Aisle | |||||
| Battery Type / Capacity | Lead Acid 48V/560-775Ah |
Lead Acid 48V/560-775Ah |
Lithium Iron Phosphate 48V/560-775Ah |
Lead Acid 48V/560-775Ah |
Lead Acid 48V/560-775Ah |
Lithium Iron Phosphate 48V/560-775Ah |
| Standard Lift Height | 4,600 mm | 4,600 mm | ||||
| Max. Lifting Height | 1,250 mm (with options up to higher elevations) | |||||
| Overall Length (Without Fork) | 1,840 mm | 1,840 mm | 1,840 mm | 1,942 mm | 1,942 mm | 1,942 mm |
| Overall Width | 1,270 mm | 1,120 mm | 1,270 mm | 1,270 mm | 1,270 mm | 1,270 mm |
| Minimum Turning Radius | ≈ 1,751 mm | ≈ 1,751 mm | ||||
| Max. Gradeability (laden) | 10% | |||||
| Fork Size | 1,150 × 122 × 40 mm | |||||
| Cab Location | Not Adjustable | |||||
| Tilt Function | Standard | |||||
| Side Shifter | Standard | |||||
| Production Capacity | 1,000 Units/Year | |||||
| Origin | China | |||||
| Transport Package | Container | |||||
Battery Options
Available with both traditional lead-acid batteries or advanced lithium iron phosphate (LiFePO4) technology for extended runtime and faster charging.
Compact Design
With widths as narrow as 1,120mm and turning radius of 1,751mm, ideal for narrow aisle operations and high-density warehouse storage.
Standard Features
Comes equipped with tilt function, side shifter, and AC motor system as standard features for enhanced operational efficiency.
Disclaimer: Please note that specifications are for reference only, we recommend consulting our sales team to confirm exact specifications for your needs.
