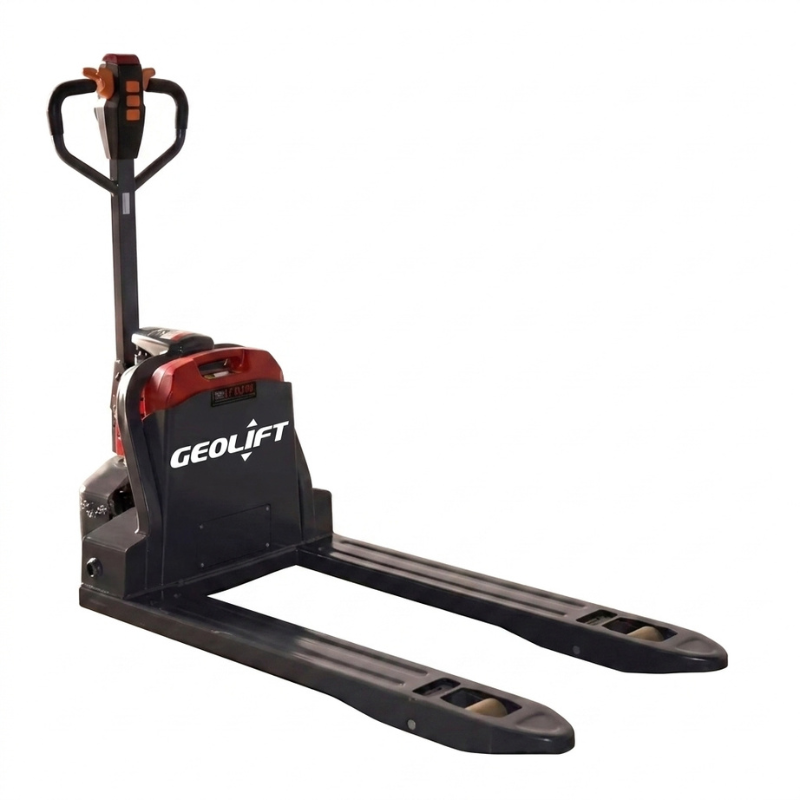

Geolift WEPT20Li-V1 – Lithium Battery Walkie Pallet Truck
The Geolift WEPT20Li-V1 is a 2.0-ton electric walkie pallet truck featuring a maintenance-free lithium battery with integrated charging. Designed for efficient pallet transport in warehouses and logistics operations, this truck offers extended runtime, fast charging, and zero battery maintenance.
Featuring a 2000kg capacity, 85mm minimum fork height, and ergonomic tiller controls, the WEPT20Li-V1 handles standard pallets with ease. AC drive technology delivers smooth performance and travel speeds of 7-8 km/h.
TECHNICAL PARAMETERS
Lithium Battery Walkie Pallet Truck 2 Ton
Lithium-Ion | WEPT20Li-V1 Series| N WEPT20-Li-V1-N | W WEPT20-Li-V1-W | |
| Rated Capacity | 2000 kg | 2000 kg |
| Load Centre | 600 mm | 600 mm |
| Overall / Fork Width | 550 mm | 685 mm |
| Fork Length | 1150 mm | 1220 mm |
| Fork Lowered Height | 85 mm | 85 mm |
| Fork Lifting Height | 200 mm | 200 mm |
| Overall Length | 1603 mm | 1603 mm |
| Overall Height | 1160 mm | 1160 mm |
| Min Turning Radius | 1398 mm | 1398 mm |
| Aisle Width (1000×1200) | 1804 mm | 1804 mm |
| Aisle Width (800×1200) | 1854 mm | 1854 mm |
| Max Travel Speed (Laden/Unladen) | 4.2 / 4.5 km/h | 4.2 / 4.5 km/h |
| Gradeability (Laden/Unladen) | 5 / 10 % | 5 / 10 % |
| Battery | 48V 30Ah Li-Ion | 48V 30Ah Li-Ion |
| Drive Motor | 0.75 kW (DC) | 0.75 kW (DC) |
| Lifting Motor | 0.8 kW (DC) | 0.8 kW (DC) |
| Weight | 146 kg | 146 kg |
| Wheel Type | Polyurethane 1D+2B+4L (Drive+Bogie+Load) | |
| Drive / Load Wheel | Drive: Ø210 × 70mm Load: Ø80 × 60mm (Double Wheel) Wheel Base: 1243mm | |
Key Technologies
Floating Drive System (FDS)
Mechanical Steering
AS Balance Wheel (Anti-Slipping)
Curtis Controller
Lithium-Ion Battery (48V 30Ah)
Electromagnetic Brake
