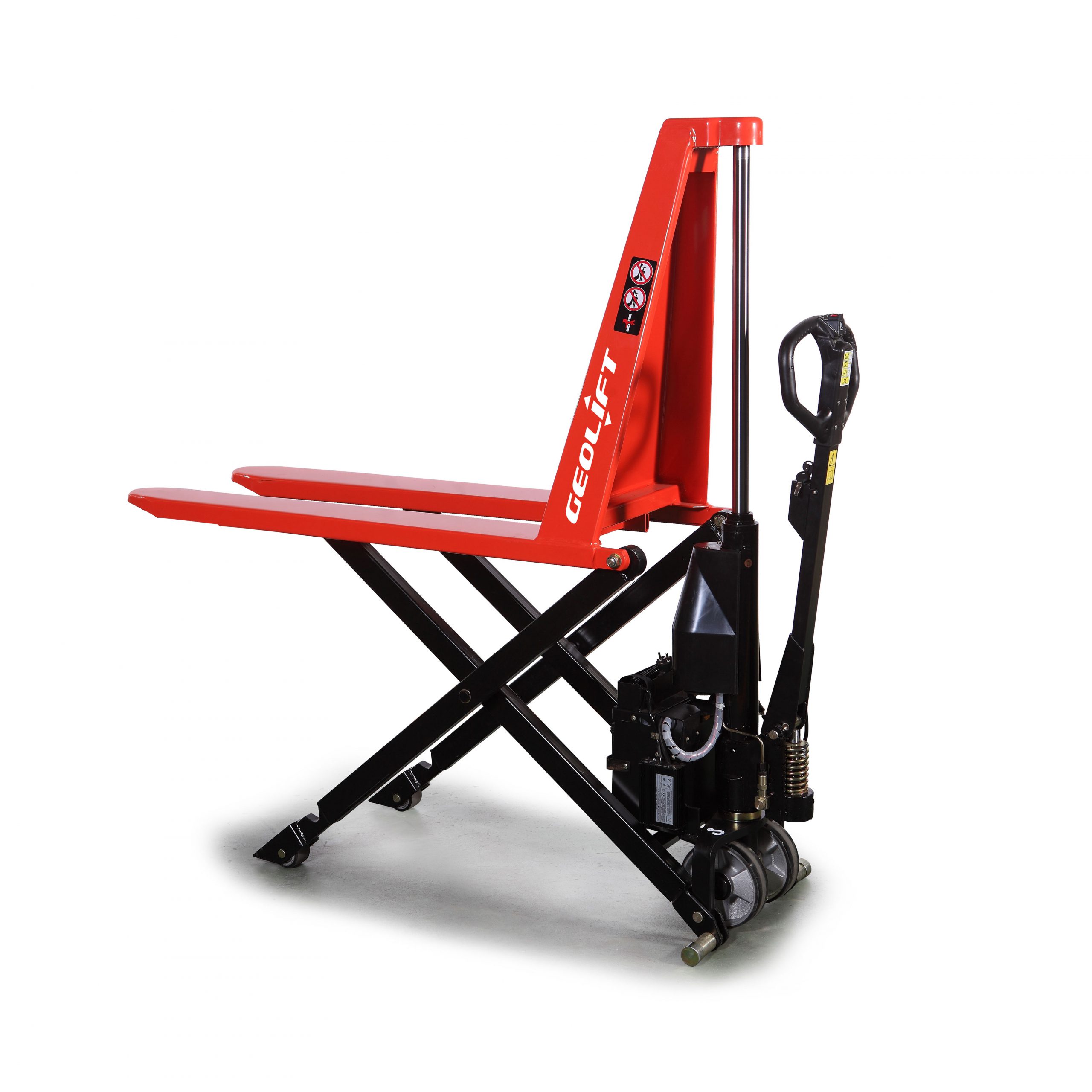

Performance of ESLP Series Electric Scissor Lift Pallet Truck
- High quality power unit made in USA.
- Optimised hydraulic system design for lifting heavy loads with minimum effort.
- Automatic descending speed control by a unique hydraulic valve, the descending speed is constantly regardless the truck with or without load to prevent cargo damage from fast descending.
- Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
- Ergonomic handle offers simple and comfortable operation.
- Heavy duty design: 4mm steel plate fork frame and larger lift piston ensure the truck to reach rated capacity.
- Conforms to EN 1757-4.
TECHNICAL PARAMETERS
Electric Scissor Lift Pallet Truck 1.0 - 1.5 Ton
Electric High Lift Pallet|
N
ESLP10-N
|
W
ESLP10-W
|
N
ESLP15-N
|
W
ESLP15-W
|
|
| Capacity (Q) | 1000 kg |
1000 kg |
1500 kg |
1500 kg |
| Overall Forks Width (B) | 540 mm |
685 mm |
540 mm |
685 mm |
| Fork Length (L) | 1150 mm |
1150 mm |
1150 mm |
1150 mm |
| Min. Fork Height (H) | 85 mm |
85 mm |
85 mm |
85 mm |
| Max. Fork Height (H1) | 800 mm |
800 mm |
800 mm |
800 mm |
| Fork Width | 162 mm |
162 mm |
162 mm |
162 mm |
| Size of Fork | 162 × 50 mm |
162 × 50 mm |
162 × 50 mm |
162 × 50 mm |
| Steering Wheel | φ 180 × 50 mm |
φ 180 × 50 mm |
φ 180 × 50 mm |
φ 180 × 50 mm |
| Load Wheel | φ 80 × 70 mm |
φ 80 × 70 mm |
φ 80 × 70 mm |
φ 80 × 70 mm |
| Battery | 12V / 60Ah |
12V / 60Ah |
12V / 60Ah |
12V / 60Ah |
| Motor Power | 0.8 kW |
0.8 kW |
0.8 kW |
0.8 kW |
| Wheel Type |
Polyurethane (Standard)
Nylon (Option)
|
|||
