Key Features & Uses:
Electric-Powered Efficiency:
Battery-operated for zero emissions, reducing operational costs and environmental impact.
Quiet operation suits noise-sensitive areas like hospitals and airports.
1-Ton Towing Capacity:
Robust enough to haul heavy loads, including:
Shopping carts in supermarkets.
Luggage carts at airports or hotels.
Trailers or freight in factories/warehouses.
Medical equipment carts in hospitals.
Walking Tractor Design:
Operator walks behind the unit (similar to a two-wheel tractor), ensuring precise control in tight spaces (e.g., narrow aisles, crowded docks).
Compact size enhances maneuverability compared to larger tow vehicles.
Adaptable & Time-Saving:
Compatible with hitches or attachments for diverse carts/trailers.
Reduces manual labor and speeds up logistics, improving productivity.
| TE 10 Electric Tractor Specifications | |
|---|---|
| Model | TE 10 |
| Power | Battery |
| Operator Type | Pedestrian |
| Load Capacity (kg) | 1000 |
| Rated Drawbar Pull (N) | 200 |
| Wheel Base (mm) | 325 |
| Service Weight (kg) | 62 |
| Tires | Rubber + PU |
| Front Tire Size (mm) | OD 250 x 80 |
| Rear Tire Size (mm) | OD 75 x 32 |
| Height of Tiller in Drive Position (mm) | 750 - 1250 |
| Overall Length (mm) | 810 |
| Overall Width (mm) | 490 |
| Ground Clearance (mm) | 36 |
| Turning Radius (mm) | 475 |
| Travel Speed (km/h) | 4.2 (laden) / 4.5 (unladen) |
| Service Brake | Electromagnetic |
| Drive Motor (kW) | 0.3 |
| Battery Voltage/Capacity (V/Ah) | 24V / 24Ah |
| Battery Weight (kg) | 16 |
| Type of Drive Control | DC - Speed Control |
| Warranty | 1 year against manufacturing defects |

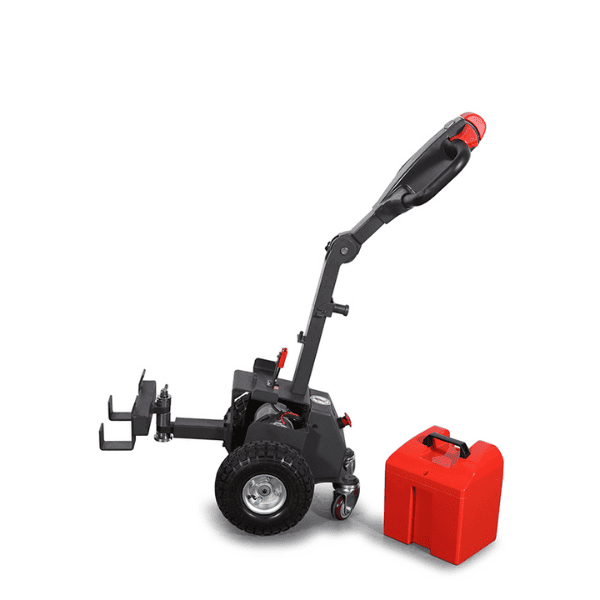

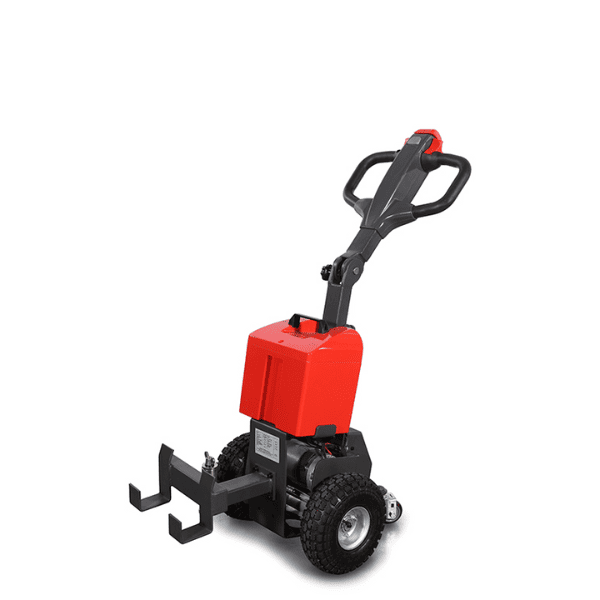

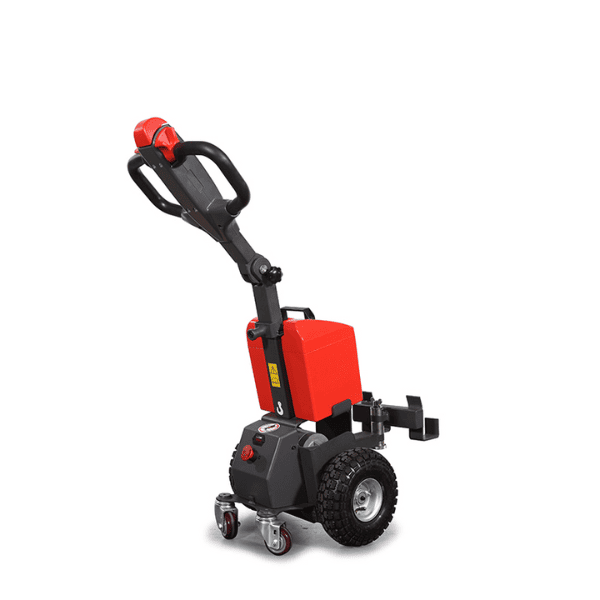

| *Compact pedestrian electric tractor with battery power* | |
