The WESW15 series is a comfortable and high secure Walkie Straddle Leg Electric Stacker with high lifting height and free lifting, equipped with Geolift-Made EPS and AC drive system.
Standard equipped with maintenance free battery. 3 different lowering speeds, slow-medium-fast suitable for different situations. Chassis design life up to 10 years. Injection molding cover, Stellana Brand Wheels offer best quality. Geolift-made EPS and Curtis controllers can real-time protect the vehicle control from circuit overvoltage, under voltage, over current, excess temperature, Short circuit. Double controllers can safely reduce the traveling speed under the condition of Mast lifting and sharp turn in the corner. The lifting Limit function can protect hydraulic motor, save energy and battery. Self-made handle can be modified for cold store application.
If you are looking for products to loading-unloading in container truck, or high-racking pallet stacking, WESW16/20 series will be your choice.

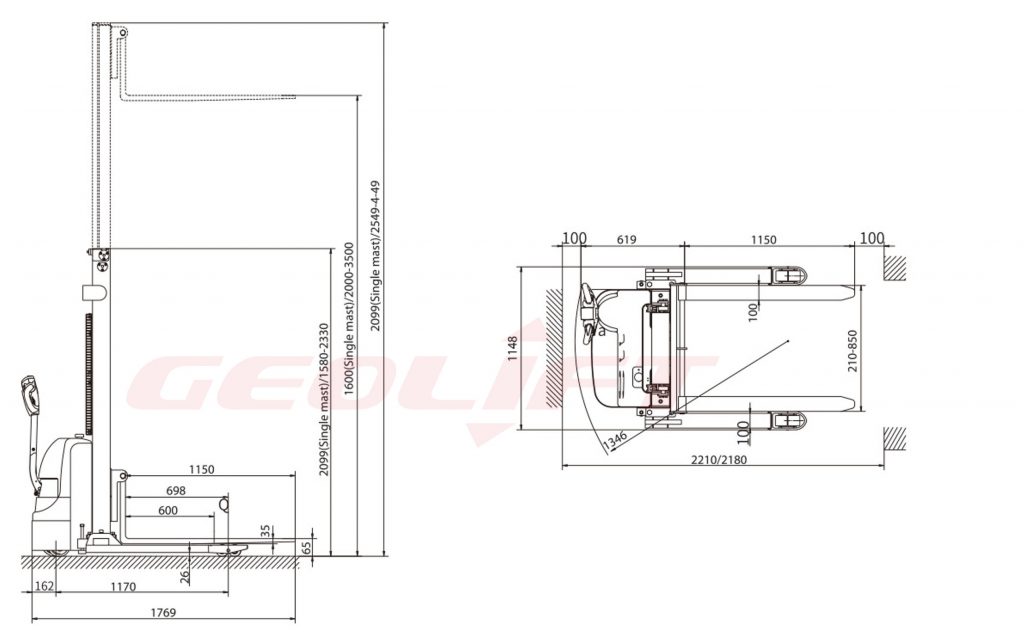

Walkie Electric Straddle Leg Stacker 1.5 Ton
WESW14 Series| Specification | UOM | WESW1516 | WESW1520 | WESW1525 | WESW1530 | WESW1535 |
|---|---|---|---|---|---|---|
| Power Supply / Operation | - | Electric · Walkie (Pedestrian) | ||||
| Mast Type | - | Standard 2-Stage (Duplex) | ||||
| Loading Capacity (Q) | kg | 1500 | ||||
| Load Center | mm | 600 | ||||
| Lifting Height | mm | 1600 | 2000 | 2500 | 3000 | 3500 |
| Min. Fork Height | mm | 65 | ||||
| Mast Lowered Height | mm | 2099 | 1580 | 1830 | 2080 | 2330 |
| Extended Mast Height | mm | 2099 | 2549 | 3049 | 3549 | 4049 |
| Size of Fork (W × H) | mm | 100 × 35 | ||||
| Fork Length | mm | 1150 | ||||
| Overall Length | mm | 1769 | ||||
| Overall Width (adjustable) | mm | 1148 – 1548 (outer straddle legs) | ||||
| Straddle Leg Outer Width | mm | 1148 – 1548 | ||||
| Straddle Leg Inner Width | mm | 948 – 1348 | ||||
| Min. Turning Radius | mm | 1346 | ||||
| Aisle Width (L1000×W1200) | mm | 2210 | ||||
| Min. Ground Clearance | mm | 26 | ||||
| Travel Speed (Laden/Unladen) | km/h | 4.0 / 4.2 | ||||
| Lifting Speed (Laden/Unladen) | mm/s | 92 / 136 | ||||
| Lowering Speed (Laden/Unladen) | mm/s | 112 / 98 | ||||
| Gradeability (Laden/Unladen) | % | 4 / 8 | ||||
| Driving Motor | kW | AC 0.75 | ||||
| Lifting Motor | kW | DC 2.20 | ||||
| Battery Voltage / Capacity | V/Ah | 12 / 100 × 2 (two batteries in series = 24V system) | ||||
| Steering Type | - | Mechanical Steering | ||||
| Brake / Controller | - | Electromagnetic / Regenerative · CORTIS | ||||
| Weight (incl. battery) | kg | 605 | 646 | 658 | 670 | 682 |
