Environment Friendliness
- zero emission
- low noise
- free of heavy metals
- no corrosion
- no acid mist volatilization
Maintenance Free
- unnecessary of fluid adding and dust proofing
- daily maintenance free
- manual maintenance free
Long Service Life
- Over 75% capacity reserved after 4000 shifts operation
- Longer service life than lead-acid battery in equal working condition
- 5 years or ten thousand hours quality guarantee for high performance lithium battery assembly
High Efficiency and Energy Saving
- 2hours charging meet 6-8 hours working demand
- High-energy density, self-discharging rate lower than 1% per month
- 95% energy conversion rate, superior charging and discharging performance
- Flexible to charge, easy to operate, no impact on battery life
- Unnecessary to change battery, cost saving & operation safety
Suitable for working in both high and low environment
- Lithium battery is better than lead-acid battery when working between -25℃and 55℃
High safety
- According to the characteristics of industrial vehicles, it achieves safety protection design which includes lithium battery materials, battery core type, PACK technique and system power management.
- “Multiple node safety closed circuit protection” realizing truck real-time closed-circuit protection in variable conditions
- “Lock affirming” function during charging avoiding “hot connecting and disconnecting” operation
- “Whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
Technical Parameters

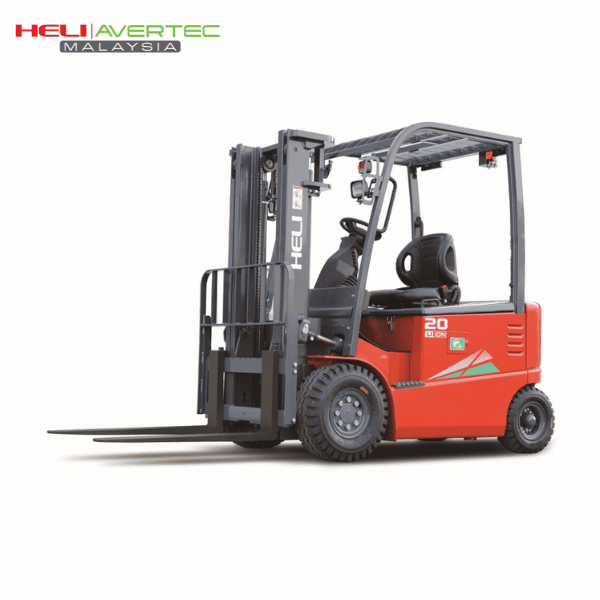

Models covered: CPD10LI (1.0 t), CPD15LI (1.5 t), CPD18LI (1.8 t), CPD20LI (2.0 t), CPD25LI (2.5 t), CPD30LI (3.0 t), CPD35LI (3.5 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CPD10LI 1,000 kg |
CPD15LI 1,500 kg |
CPD18LI 1,800 kg |
CPD20LI 2,000 kg |
CPD25LI 2,500 kg |
CPD30LI 3,000 kg |
CPD35LI 3,500 kg |
|---|---|---|---|---|---|---|---|
| Rated Capacity (Q) | 1,000 kg | 1,500 kg | 1,800 kg | 2,000 kg | 2,500 kg | 3,000 kg | 3,500 kg |
| Load Center (C) | 500mm
|
||||||
| Drive / Power | Electric (Li-ion) • 3-wheel counterbalance • AC systemG Series | ||||||
| Battery Voltage / Capacity (options) | 48 V / 200–400 Ah | ||||||
| Controller / Control Mode | AC controller • IGBT control | ||||||
| Travel Speed (laden / unladen) | ≈ 15 / 16 km/h | ≈ 14.5 / 15.5 km/h | ≈ 14 / 15 km/h | ≈ 13.5 / 14.5 km/h | ≈ 13 / 14 km/h | ≈ 12.5 / 13.5 km/h | ≈ 12 / 13 km/h |
| Lift Speed (laden / unladen) | ≈ 0.35 / 0.42 m/s | ≈ 0.33 / 0.40 m/s | ≈ 0.32 / 0.38 m/s | ≈ 0.30 / 0.36 m/s | ≈ 0.28 / 0.34 m/s | ≈ 0.26 / 0.32 m/s | ≈ 0.24 / 0.30 m/s |
| Lowering Speed (laden / unladen) | ≈ 0.40 / 0.40 m/s | ||||||
| Max. Gradeability (laden) | ≈ 15% | ≈ 14% | |||||
| Turning Radius | ≈ 1,750 mm | ≈ 1,800 mm | ≈ 1,850 mm | ≈ 2,000 mm | ≈ 2,100 mm | ≈ 2,200 mm | ≈ 2,300 mm |
| Motors (drive / lift) | Drive ≈ 7.5 kW • Lift ≈ 9.5 kW | ||||||
| Service / Parking Brake | Regenerative / Automatic parking | ||||||
| Tyres | Polyurethane: Front 18x7-8 • Rear 15x4.5-8 | Polyurethane: Front 21x8-9 • Rear 18x7-8 | |||||
| Standard Lift Height | 3,000 mm (wide-view mast); optional 2-stage & 3-stage masts available | ||||||
| Overall Length (without forks) | ≈ 2,100 mm | ≈ 2,130 mm | ≈ 2,150 mm | ≈ 2,300 mm | ≈ 2,400 mm | ≈ 2,500 mm | ≈ 2,600 mm |
| Overall Width | ≈ 1,050 mm | ≈ 1,130 mm | ≈ 1,230 mm | ||||
| Overhead Guard Height | ≈ 2,050 mm | ||||||
| Mast Tilt (F/B) | 6° / 12° | ||||||
| Convenience & Uptime | Fast charging • Opportunity charging • LCD display with diagnostics | ||||||
| Safety Aids | Turning speed limit • Mast lift/lower buffering • OPS presence system | ||||||
