Environment Friendliness
- zero emission
- low noise
- free of heavy metals
- no corrosion
- no acid mist volatilization
Maintenance Free
- unnecessary of fluid adding and dust proofing
- daily maintenance free
- manual maintenance free
Long Service Life
- Over 75% capacity reserved after 4000 shifts operation
- Longer service life than lead-acid battery in equal working condition
- 5 years or ten thousand hours quality guarantee for high performance lithium battery assembly
High Efficiency and Energy Saving
- 2hours charging meet 6-8 hours working demand
- High-energy density, self-discharging rate lower than 1% per month
- 95% energy conversion rate, superior charging and discharging performance
- Flexible to charge, easy to operate, no impact on battery life
- Unnecessary to change battery, cost saving & operation safety
Suitable for working in both high and low environment
- Lithium battery is better than lead-acid battery when working between -25℃and 55℃
High safety
- According to the characteristics of industrial vehicles, it achieves safety protection design which includes lithium battery materials, battery core type, PACK technique and system power management.
- “Multiple node safety closed circuit protection” realizing truck real-time closed-circuit protection in variable conditions
- “Lock affirming” function during charging avoiding “hot connecting and disconnecting” operation
- “Whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
Technical Parameters

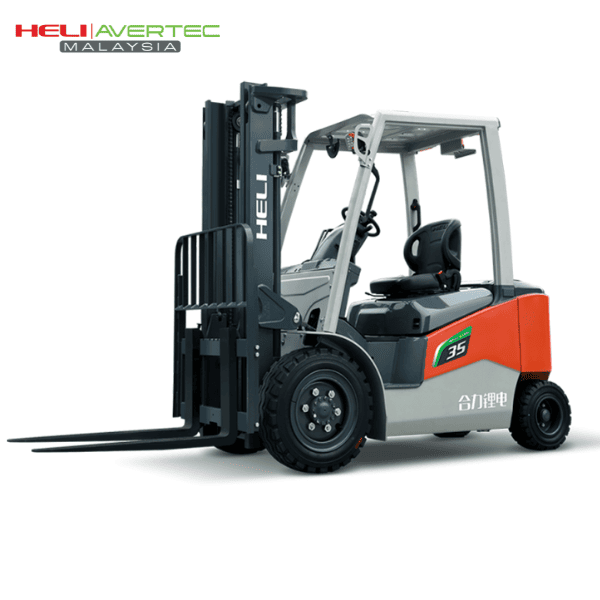

Models covered: CPD10LI (1.0 t), CPD15LI (1.5 t), CPD18LI (1.8 t), CPD20LI (2.0 t), CPD25LI (2.5 t), CPD30LI (3.0 t), CPD35LI (3.5 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CPD10LI 1,000 kg |
CPD15LI 1,500 kg |
CPD18LI 1,800 kg |
CPD20LI 2,000 kg |
CPD25LI 2,500 kg |
CPD30LI 3,000 kg |
CPD35LI 3,500 kg |
|---|---|---|---|---|---|---|---|
| Rated Capacity (Q) | 1,000 kg | 1,500 kg | 1,800 kg | 2,000 kg | 2,500 kg | 3,000 kg | 3,500 kg |
| Load Center (C) | 500mm
|
||||||
| Drive / Power | Lithium-ion Battery • 3-wheel counterbalance • AC systemG2 Technology | ||||||
| Battery Voltage / Capacity | 48 V / 200-400 Ah (Li-ion, various options available) | ||||||
| Controller / Control Mode | Advanced AC controller • IGBT control technology | ||||||
| Travel Speed (laden / unladen) | 16 / 17 km/h | 15.5 / 16.5 km/h | 15 / 16 km/h | 14.5 / 15.5 km/h | 14 / 15 km/h | 13.5 / 14.5 km/h | 13 / 14 km/h |
| Lift Speed (laden / unladen) | 0.38 / 0.45 m/s | 0.36 / 0.43 m/s | 0.35 / 0.42 m/s | 0.33 / 0.40 m/s | 0.32 / 0.38 m/s | 0.30 / 0.36 m/s | 0.28 / 0.34 m/s |
| Lowering Speed (laden / unladen) | 0.45 / 0.45 m/s (controlled descent) | ||||||
| Max. Gradeability (laden) | Up to 18% | Up to 16% | |||||
| Turning Radius | 1,800 mm | 1,850 mm | 1,900 mm | 2,050 mm | 2,150 mm | 2,250 mm | 2,350 mm |
| Motors (drive / lift) | AC Drive Motor • AC Lift Motor (Power varies by model) | ||||||
| Service / Parking Brake | Regenerative braking / Automatic parking brake | ||||||
| Tyres | Polyurethane: Front 18x7-8 • Rear 15x4.5-8 | Polyurethane: Front 21x8-9 • Rear 18x7-8 | |||||
| Standard Lift Height | 3,000 mm (Duplex mast standard) | ||||||
| Overall Length (without forks) | 2,150 mm | 2,180 mm | 2,200 mm | 2,350 mm | 2,450 mm | 2,550 mm | 2,650 mm |
| Overall Width | 1,070 mm | 1,150 mm | 1,250 mm | ||||
| Overhead Guard Height | 2,070 mm | ||||||
| Mast Tilt (F/B) | 6° / 12° | ||||||
| Battery Charging | Fast charging compatible (1-2 hours) • Opportunity charging supported | ||||||
| Operator Features | Ergonomic cabin • Adjustable suspension seat • LCD display with diagnostics | ||||||
| Safety Features | Stability control system • Speed limiting in turns • Load sensing • Blue light safety option | ||||||
G2 Series Advantages
Advanced lithium-ion technology with smart battery management system for extended life and performance.
Intelligent Operation
Fleet management ready with CANbus connectivity and performance data logging capabilities.
Eco-Friendly
Zero emissions operation with reduced noise levels for indoor and outdoor applications.
Disclaimer: Please note that specifications are for reference only, we recommend consulting our sales team to confirm exact specifications for your needs.
