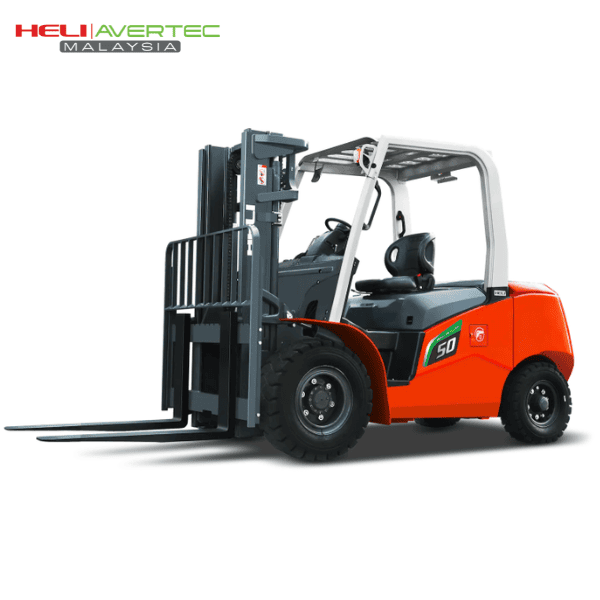

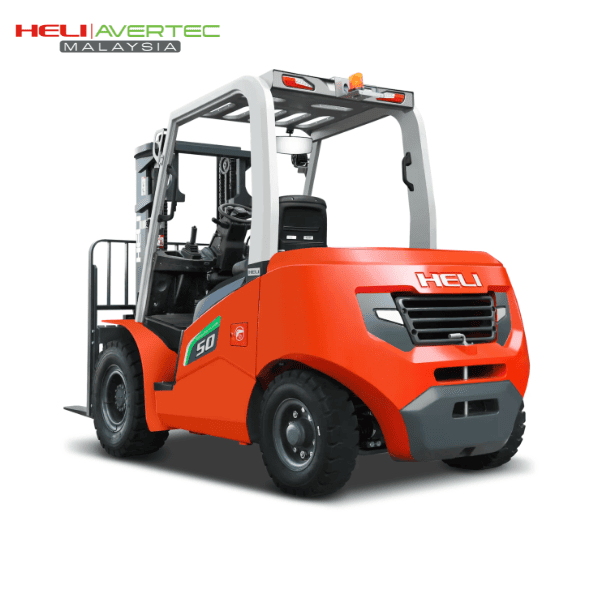

IC forklift design with a powerful lithium battery at its heart, yes you have before your eyes one of our most efficient electric forklifts!
Available in 4.0-4.5-5.0t, this forklift will allow you to benefit from the high stability, performance and environmental adaptability of a IC forklift while benefiting from the exceptional qualities in terms of ecology and environmental protection of an lithium battery forklift.
Forklift with a high voltage battery of 153.6V unlike the other models which are generally around 80V. Significantly improved overall energy efficiency by increasing motor power and reducing motor and controller current.
Permanent magnet synchronous motor, lighter mass than the three-phase motor of the same energy.
Versatile and efficient, this forklift will meet all the needs of its user thanks to its different performance modes which adapt to all situations and working conditions encountered.
Standard Load detection system on this machine which allows significant energy savings during operations.
Liquid cooling system and heat dissipation as Standard.
Safety and voltage protection system: Short circuits, protected and isolated, the voltage does not exceed 76.8V when the key is disconnected, the maintenance button is pressed or when there is a problem in the system.
Other: Color screen with real-time information, Automatic reduction of truck speed during turns, OPS system (travel+lift+tilt+accessory) Standard, USB port, etc…
Standard lithium battery:
- 4-5t = 153.6V/230Ah
Lithium battery Option:
- 6V/280Ah
- 6V/346Ah
Technical characteristics :
- Load capacity: 4000-5000Kg
- Standard lifting height: 3000mm
- Voltage: 153.6V
- Maximum speed: 18Km/h
- Slope ability with load: 17%
Technical Parameters
Models covered: CPD40 (4.0 t), CPD45 (4.5 t), CPD50 (5.0 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CPD40 4,000 kg |
CPD45 4,500 kg |
CPD50 5,000 kg |
|---|---|---|---|
| Rated Capacity (Q) | 4,000 kg | 4,500 kg | 5,000 kg |
| Load Center (C) | 500mm
|
||
| Drive / Power | Electric (Li-ion) • 4-wheel counterbalance • Front dual driveDual-motor | ||
| Battery Voltage / Capacity (options) | 77 V / 600–800 Ah | ||
| Controller / Control Mode | ZAPI controller • MOSFET AC control | ||
| Travel Speed (laden / unladen) | ≈ 15 / 16 km/h | ≈ 14.5 / 15.5 km/h | ≈ 14 / 15 km/h |
| Lift Speed (laden / unladen) | ≈ 0.33 / 0.40 m/s | ≈ 0.32 / 0.38 m/s | ≈ 0.30 / 0.36 m/s |
| Lowering Speed (laden / unladen) | ≈ 0.45 / 0.45 m/s | ||
| Max. Drawbar Pull | ≈ 28,000 N | ||
| Max. Gradeability (laden) | Up to 20% | ||
| Acceleration 0–20 m (laden / unladen) | ≈ 5.0 s / 5.4 s | ≈ 5.2 s / 5.6 s | ≈ 5.4 s / 5.8 s |
| Motors (drive / lift) | Drive ≈ 15 kW ×2 • Lift ≈ 18 kW ×2 | ||
| Service / Parking Brake | Hydraulic (wet, negative) / Automatic parking | ||
| Tyres | Solid: Front 28x9-15 • Rear 21x8-9 | ||
| Standard Lift Height | 3,000 mm (wide-view mast); optional 2-stage FFL & 3-stage masts available | ||
| Overall Length (with / without forks) | ≈ 3,715 / 2,695 mm | ≈ 3,720 / 2,700 mm | ≈ 3,725 / 2,705 mm |
| Overall Width | ≈ 1,590 mm | ≈ 1,590 mm | ≈ 1,590 mm |
| Overhead Guard Height | ≈ 2,490 mm | ≈ 2,490 mm | ≈ 2,490 mm |
| Mast Tilt (F/B) | 6° / 12° | ||
| Convenience & Uptime | Dual-gun fast charging • Opportunity charging • Side battery change • Color display with diagnostics | ||
| Safety Aids | Intelligent auto-parking • Turning speed limit • Mast lift/lower buffering • OPS presence system | ||
