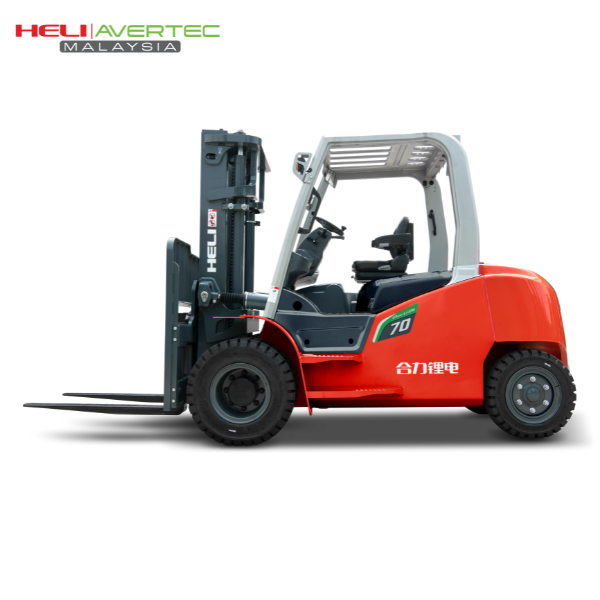

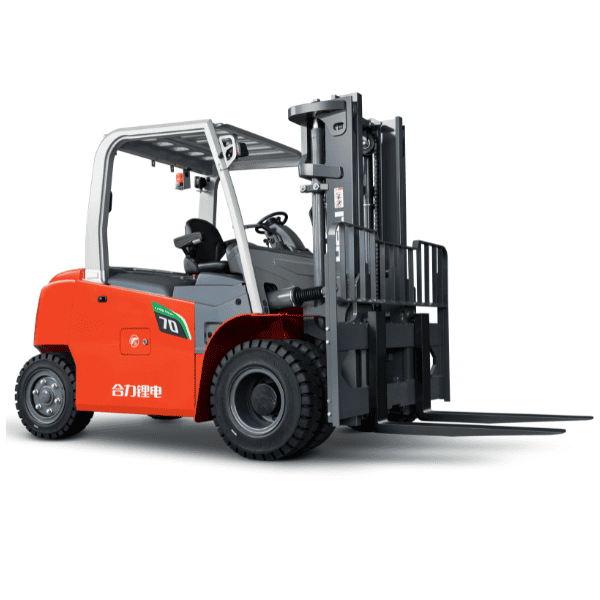

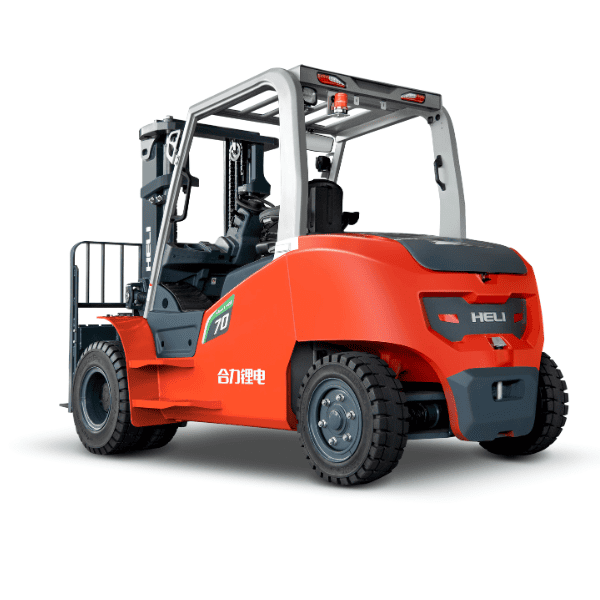

HELI G3 Series 6.0–10.0 Tonne 4-Wheel Lithium Battery Forklift
Heavy-duty lifting meets modern electric performance. The HELI G3 Lithium Battery Forklift is engineered to handle demanding loads from 6 to 10 tonnes with unmatched efficiency, safety, and reliability, all while delivering the low maintenance and convenience benefits of lithium technology.
- Efficiency You Can Count On
Powered by an advanced lithium-ion battery system, the G3 Series delivers consistent power throughout the shift, with rapid opportunity charging to keep downtime to a minimum. Its high-torque electric drive ensures strong acceleration, smooth handling, and optimal energy use — even under maximum load. - Safety at Every Turn
Equipped with stability control, regenerative braking, and precision hydraulic systems, this forklift keeps operators safe while protecting your goods. Enhanced visibility from the ergonomic cabin ensures full awareness in busy warehouse or yard environments.
3. Built for Reliability
The G3 Series is designed with a heavy-duty chassis, reinforced mast, and weather-resistant components to withstand intensive industrial use. HELI’s proven engineering ensures dependable performance shift after shift, year after year.
4. Low Maintenance, High Uptime
Lithium-ion technology means no battery swapping, no topping up fluids, and far fewer service interventions. Combined with an electric powertrain that has fewer moving parts than diesel alternatives, the result is lower operating costs and more time on the job.
5. Convenience in Every Detail
From its spacious, operator-friendly cabin to intuitive controls and real-time battery monitoring, every aspect of the G3 Series is designed for ease of use. Quick charging capability lets you keep operations moving without long breaks or complicated charging routines.
Technical Parameters
Models covered: CPD60 (6.0 t), CPD70 (7.0 t), CPD85 (8.5 t), CPD100 (10.0 t). Values shown are for standard configurations; mast/attachment choices may change some dimensions and performance.
| Parameter | CPD60 6,000 kg |
CPD70 7,000 kg |
CPD85 8,500 kg |
CPD100 10,000 kg |
|---|---|---|---|---|
| Rated Capacity (Q) | 6,000 kg | 7,000 kg | 8,500 kg | 10,000 kg |
| Load Center (C) | 600mm
|
|||
| Drive / Power | Electric (Li-ion) • 4-wheel counterbalance • Front dual driveDual-motor | |||
| Battery Voltage / Capacity (options) | 80 V / 808–960 Ah | 80 V / 808–960 Ah | ||
| Controller / Control Mode | ZAPI controller • MOSFET AC control | |||
| Travel Speed (laden / unladen) | ≈ 14 / 15.5 km/h | ≈ 14 / 15.5 km/h | ≈ 13 / 15.5 km/h | ≈ 13 / 15.5 km/h |
| Lift Speed (laden / unladen) | ≈ 0.30 / 0.395 m/s | ≈ 0.30 / 0.395 m/s | ≈ 0.255 / 0.350 m/s | ≈ 0.255 / 0.350 m/s |
| Lowering Speed (laden / unladen) | ≈ 0.43 / 0.43 m/s | ≈ 0.43 / 0.43 m/s | ≈ 0.43 / 0.35 m/s | ≈ 0.43 / 0.35 m/s |
| Max. Drawbar Pull | ≈ 35,000 N | |||
| Max. Gradeability (laden) | Up to 18% | Up to 15% | ||
| Acceleration 0–20 m (laden / unladen) | ≈ 5.38 s / 5.84 s | ≈ 5.62 s / 6.31 s | ||
| Motors (drive / lift) | Drive ≈ 17.1 kW ×2 • Lift ≈ 26.5 kW ×2 | |||
| Service / Parking Brake | Hydraulic (wet, negative) / Automatic parking | |||
| Tyres | Solid: Front 8.25-15 • Rear 250-15 | Solid: (heavy-duty sizes per model) | ||
| Standard Lift Height | 3,000 mm (wide-view mast); optional 2-stage FFL & 3-stage masts available | |||
| Overall Length (with / without forks) | ≈ 4,657 / 3,437 mm | ≈ 4,662 / 3,442 mm | ≈ 5,410 / 5,210 mm | ≈ 5,410 / 5,210 mm |
| Overall Width | ≈ 2,045 mm | ≈ 2,045 mm | ≈ 2,200 mm | ≈ 2,200 mm |
| Overhead Guard Height | ≈ 2,491 mm | ≈ 2,491 mm | ≈ 3,230 mm | ≈ 3,230 mm |
| Mast Tilt (F/B) | 6° / 10° | 6° / 6° to 6° / 9° (by mast) | ||
| Convenience & Uptime | Dual-gun fast charging • Opportunity charging • Side battery change • Color display with diagnostics | |||
| Safety Aids | Intelligent auto-parking • Turning speed limit • Mast lift/lower buffering • OPS presence system | |||
