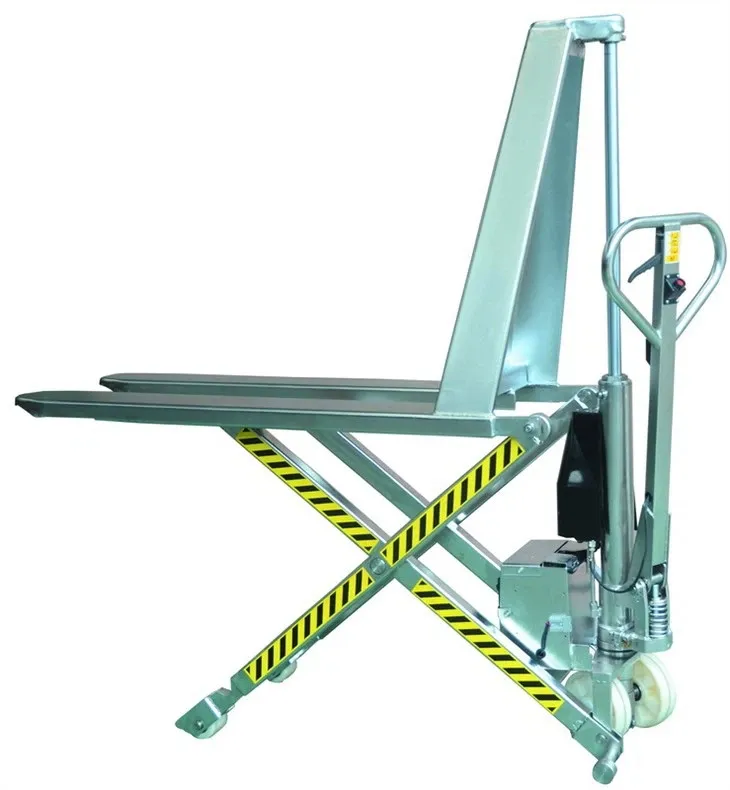

Electric Stainless Steel Scissor Lift Pallet Truck – ESLP-SS Series
The Geolift ESLPSS, a premium electric stainless steel scissor lift pallet truck engineered for hygienic and corrosive environments. Combining the functionality of a high-lift pallet truck with durable 304 stainless steel construction, this versatile solution is ideal for food processing, pharmaceutical manufacturing, clean rooms, medical facilities, and wet/corrosive environments where hygiene and corrosion resistance are paramount .
Available in 1,000kg and 1,500kg capacity models, the ESLPSS features an 800mm maximum fork height with a low 85mm minimum height for easy pallet entry . The electric scissor lifting mechanism eliminates manual effort, significantly reducing operator fatigue and improving productivity. A 12V/60Ah battery with built-in charger ensures convenient and efficient operation
TECHNICAL PARAMETERS
ELectric Stainless Steel Scissor Lift 1.0 - 1.5 Ton
Electric Scissor Lift Pallet Truck . ESLP SS Series| N ESLP10SS-N | W ESLP10SS-W | N ESLP15SS-N | W SLP15SS-W | |
| Capacity (Q) | 1000 kg | 1000 kg | 1500 kg | 1500 kg |
| Overall Forks Width (B) | 540 mm | 680 mm | 540 mm | 680 mm |
| Fork Length (L) | 1150 mm | 1150 mm | 1150 mm | 1150 mm |
| Min. Fork Height (H) | 85 mm | 85 mm | 85 mm | 85 mm |
| Max. Fork Height (H1) | 800 mm | 800 mm | 800 mm | 800 mm |
| Battery | 12/75 V/Ah | 12/75 V/Ah | 12/75 V/Ah | 12/75 V/Ah |
| Size of Fork | 162 × 50 mm | 162 × 50 mm | 162 × 50 mm | 162 × 50 mm |
| Dia. Of Front Wheel | φ 80 × 70 mm | φ 80 × 70 mm | φ 80 × 70 mm | φ 80 × 70 mm |
| Dia. Of Rear Wheel | φ 180 × 50 mm | φ 180 × 50 mm | φ 180 × 50 mm | φ 180 × 50 mm |
| Lifting Motor power | 0.8kw | 0.8 kw | 0.8kw | 0.8kw |
| Wheel Type | Nylon (Standard) Polyurethane (Option) | |||
