Performance of AC- Stainless Steel Pallet Truck Scale

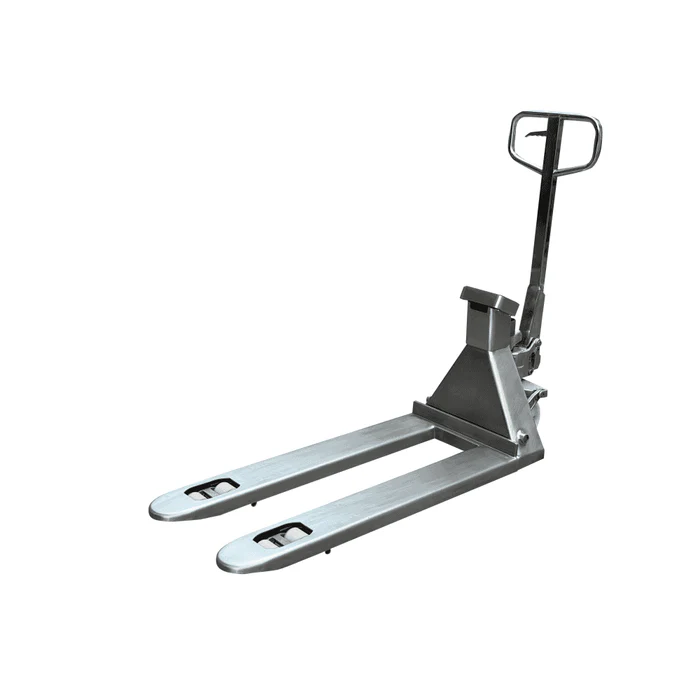

The Geolift AC25SS is a 2.5-ton stainless steel pallet truck with integrated weighing capability, designed for sanitary and corrosive environments. Built from 304 stainless steel, this pallet scale truck is perfect for food processing, pharmaceutical, and clean room applications where hygiene and corrosion resistance are paramount.
Featuring an anti-overload hydraulic system, ergonomic stainless steel handle, and robust one-piece forks, the AC25SS delivers reliable performance and accurate weighing during transport . Available in 520mm and 685mm fork widths to accommodate standard and oversized pallets. Contact Helitruck Malaysia for pricing and availability.
Â
TECHNICAL PARAMETERS
Stainless Steel Weight Scale Pallet Truck 2.5 Ton
Steel Pallet Truck - AC-SS-WS Series| N AC25SS-WS-N | W AC25SS-WS-W | |
| Capacity (Q) | 2500 kg | 2500 kg |
| Overall Forks Width (B) | 540 mm | 685 mm |
| Fork Length (L) | 1150 mm | 1220 mm |
| Min. Fork Height (H) | 85 mm | 85 mm |
| Max. Fork Height (H1) | 200 mm | 200 mm |
| Fork Width (e) | 160 mm | 160 mm |
| Accuracy | ± 1.0 kg | ±1.0 kg |
| Load Wheel (Tandem) | φ 80 × 70 mm | φ 80 × 70 mm |
| Wheel Type | Nylon (Standard) Polyurethane (Option) | |
