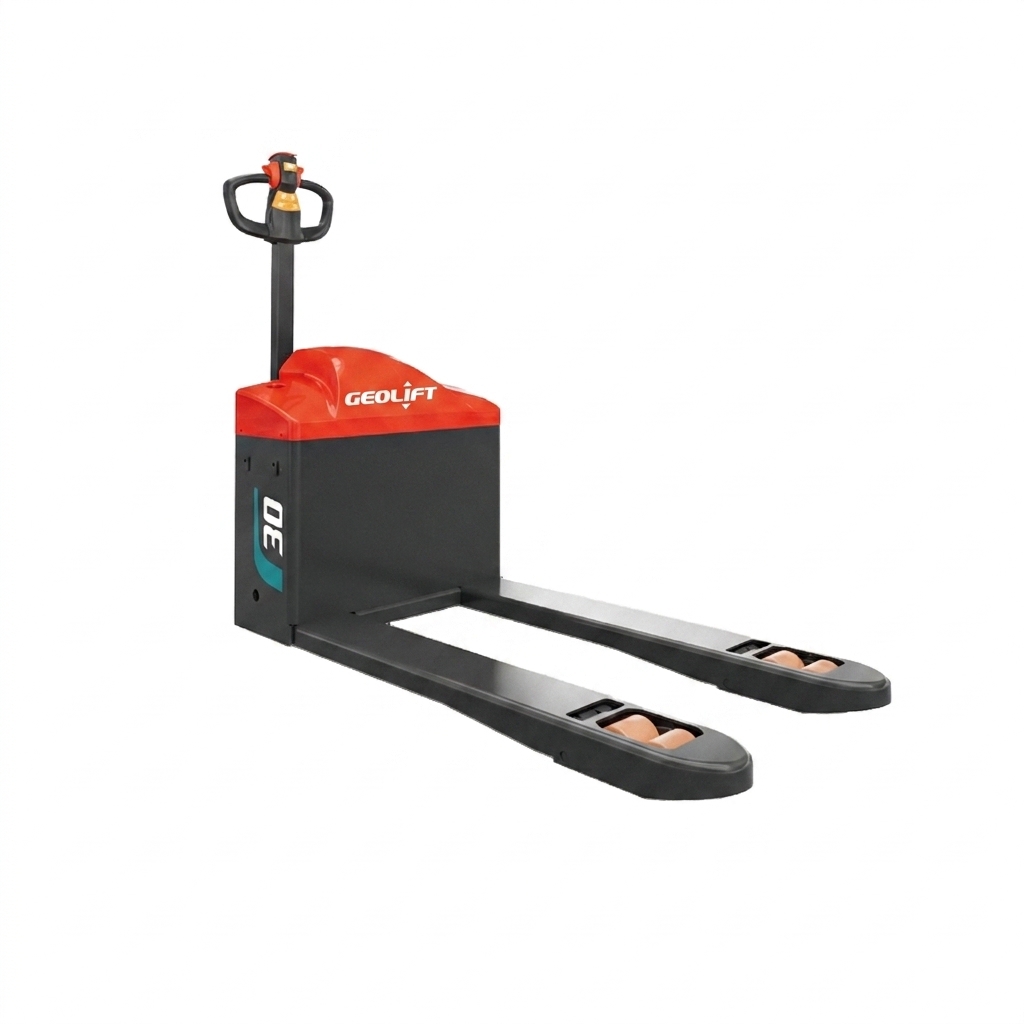

Geolift WEPT30 – High Capacity Powered Pallet Truck
The Geolift WEPT30 is a 3.0-ton powered walkie pallet truck designed for heavy-duty pallet transport in warehouses and industrial settings. Featuring robust construction, powerful drive system, and ergonomic controls, this electric pallet truck delivers reliable performance for demanding Malaysian material handling applications. Ideal for heavy loads, logistics operations, and high-intensity warehousing, the WEPT30 offers durability, safety, and ease of use.
TECHNICAL PARAMETERS
Electric Walkie Pallet Truck 3 Ton
Heavy-Duty | WEPT30 Series| N WEPT30-N | W WEPT30-W | |
| Rated Capacity | 3000 kg | 3000 kg |
| Load Centre | 600 mm | 600 mm |
| Overall / Fork Width | 560 mm | 685 mm |
| Fork Length | 1150 mm | 1200 mm |
| Fork Lowered Height | 85 mm | 85 mm |
| Max Fork Lifting Height | 205 mm | 205 mm |
| Overall Length | 1773 mm | 1773 mm |
| Overall Height | 1382 mm | 1382 mm |
| Machine Overall Width | 697 mm | 697 mm |
| Min Turning Radius | 1628 mm | 1628 mm |
| Aisle Width (1000×1200) | 1961 mm | 1961 mm |
| Aisle Width (800×1200) | 1933 mm | 1933 mm |
| Max Travel Speed (Laden/Unladen) | 3.5 / 4.0 km/h | 3.5 / 4.0 km/h |
| Gradeability (Laden/Unladen) | 10 / 20 % | 10 / 20 % |
| Battery | 48V 30Ah | 48V 30Ah |
| Drive Motor | 1.8 kW (DC) | 1.8 kW (DC) |
| Lifting Motor | 0.8 kW (DC) | 0.8 kW (DC) |
| Weight | 360 kg | 360 kg |
| Wheel Type | Rubber (Drive) Nylon (Load) 1D+4L (Drive+Load) | |
| Drive / Load Wheel | Drive: Ø300 × 110mm Load: Ø84 × 80mm (Double Wheel) Wheel Base: 1380mm | |
Key Technologies
Floating Drive System (FDS)
Mechanical Steering
AS Balance Wheel (Anti-Slipping)
Curtis Controller
48V 30Ah Battery
Electromagnetic Brake
