Performance of PS Series Manual Platform Stacker
- Combination of stacker and lifting table.
- Easier and faster lifting operation.
- Lifting movement via collapsible foot pedal.
- Sensitive lowering through relief valve.
- Overload protection via pressure valve.
- Removable platform plate.
- Safe operation and secure working condition.
- Stable chassis with 2 frame rollers and 2 steering rollers.
- Robust construction and hard chromium plated frame.
- Epoxy powder coating plated ram.
- Effortless movement.
- Ball bearing rollers, polyurethane wheels.
- Conforms to EN 1757-1 & EN 1175-1.

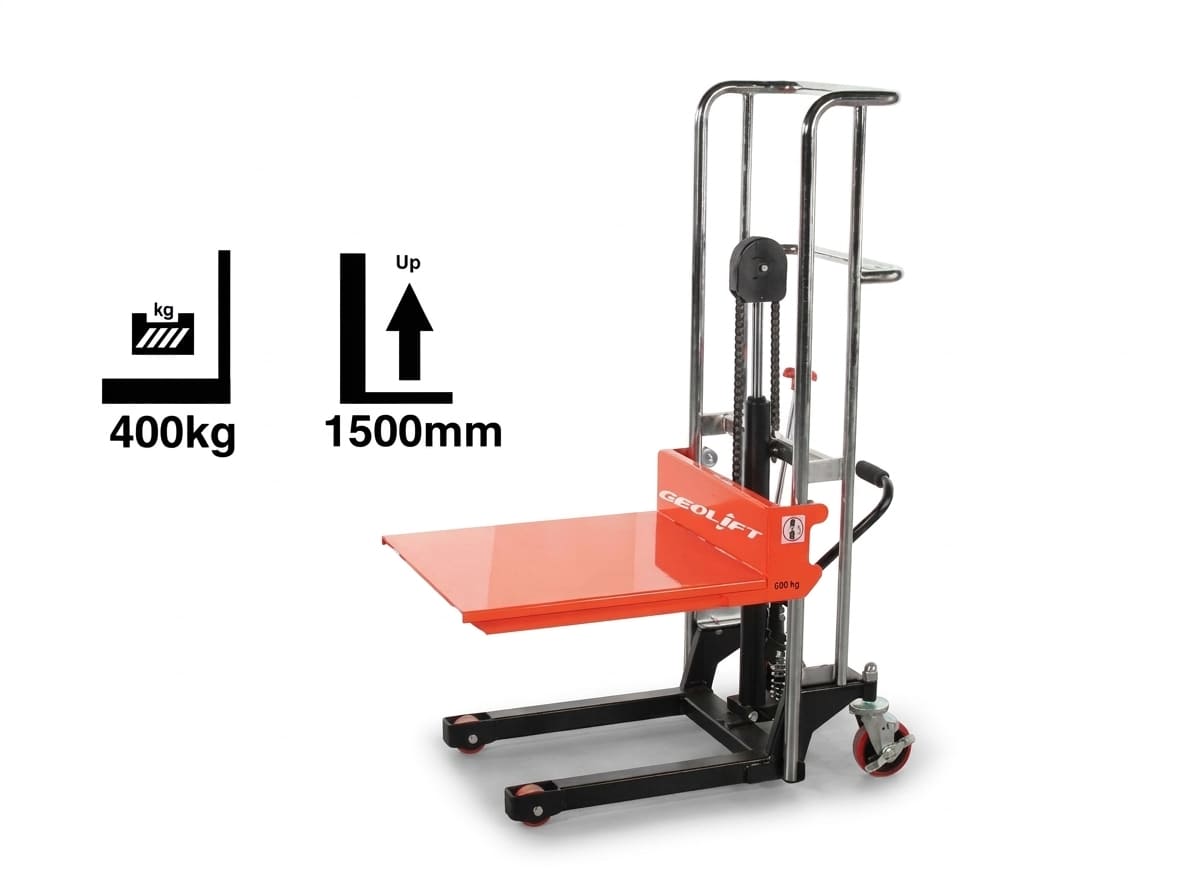

Platform Stacker – 400kg
WS Series| Specification | UOM | PS0485 | PS0411 | PS0415 | PS0417 |
|---|---|---|---|---|---|
| Capacity (Q) | kg | 400 kg (All Models) | |||
| Min. Platform Height (H₁) | mm | 90 | 90 | 85 | 85 |
| Max. Platform Height (H₂) | mm | 850 | 1100 | 1500 | 1700 |
| Min. Mast Height (F) | mm | 1110 | 1360 | 1725 | 1960 |
| Platform Dimension (L × W) | mm | 650 × 580 | |||
| Length of Fork / Platform | mm | 650 | |||
| Weight | kg | 80 | 85 | 91 | 98 |
🏗️ Construction: Robust steel frame · powder-coated finish · non-marking platform surface ✅ Conforms to EN 1757-1 & EN 1175-1 Standards
🛞 Polyurethane wheels · smooth maneuverability
📦 Platform size: 650×580 mm · ideal for totes & containers
⚡ Manual hydraulic lifting · ergonomic handle
ℹ️ Note: PS Series features a fixed platform (650×580 mm) with 400 kg capacity across all models. Choose lifting height based on your application: 850 mm (PS0485), 1100 mm (PS0411), 1500 mm (PS0415), or 1700 mm (PS0417). Ideal for workbench feeding, assembly lines, and container positioning.
